Industrial Titanium Bars, Sheets & Wire
HTN supplies commercially pure titanium and titanium alloys for industrial machining, fabrication and corrosion-resistant equipment. Materials are sourced from qualified mills, with documentation review, agreed inspection and international delivery support.
Industrial Titanium Products
Industrial Titanium Bar & Rod
HTN supplies titanium bars and rods to ASTM B348 for machining industrial components, fasteners and valve parts. Grade, dimensions, tolerances, supply condition and surface finish are confirmed for each order.
ASTM B348 Grade 12 Titanium Rod / Bar

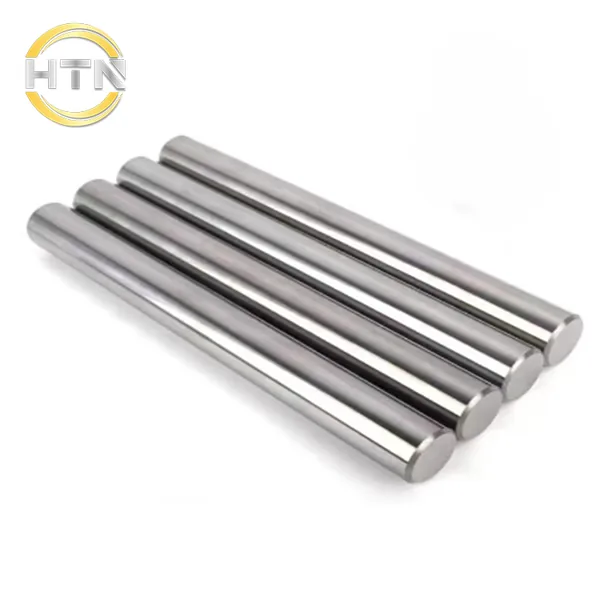

ASTM B348 Grade 7 Titanium Rod / Bar

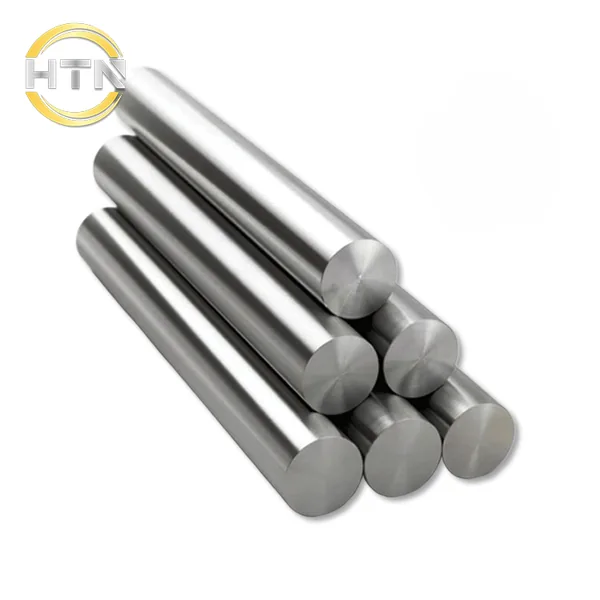

ASTM B348 Grade 5 Titanium Rod

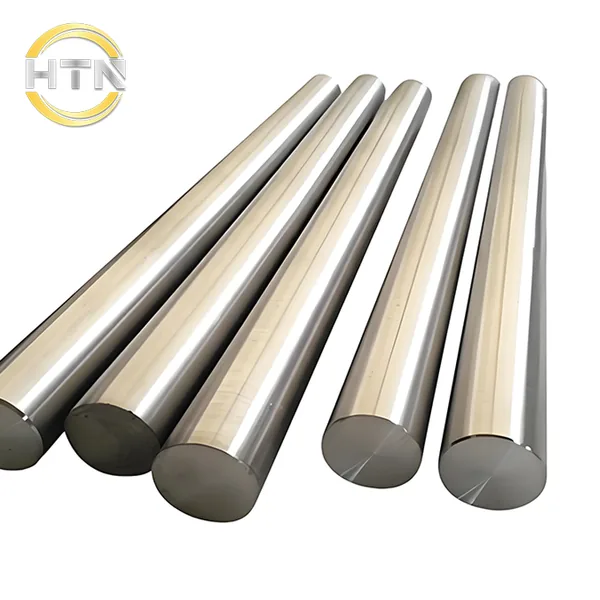

ASTM B348 Grade 2 Titanium Bar
Industrial Titanium Plate & Sheet
HTN supplies titanium plates and sheets to ASTM B265 for fabricated equipment, linings, tanks and selected heat-exchanger components. Grade, thickness, dimensions, surface finish and supply condition are confirmed against the fabrication and service requirements.

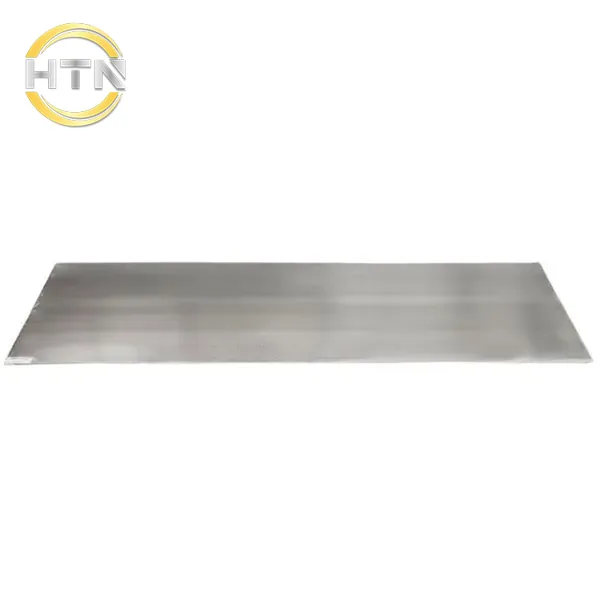

ASTM B265 Grade 7 Titanium Sheet & Plate

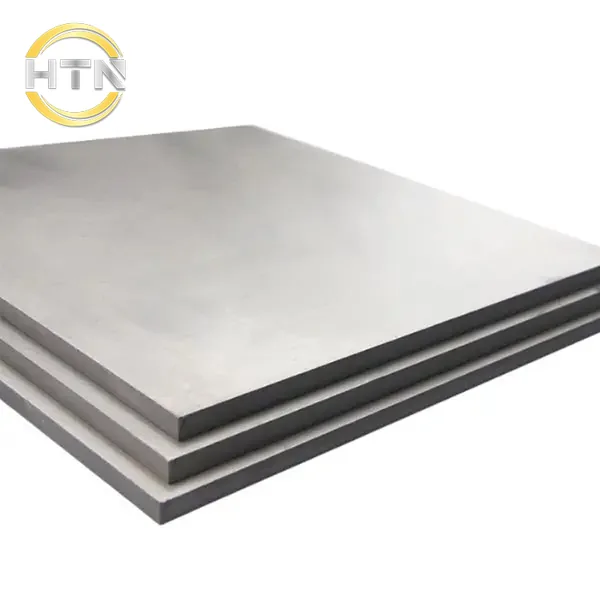

ASTM B265 Grade 2 Titanium Sheet & Plate
ASTM B265 Grade 1 Titanium Sheet & Plate

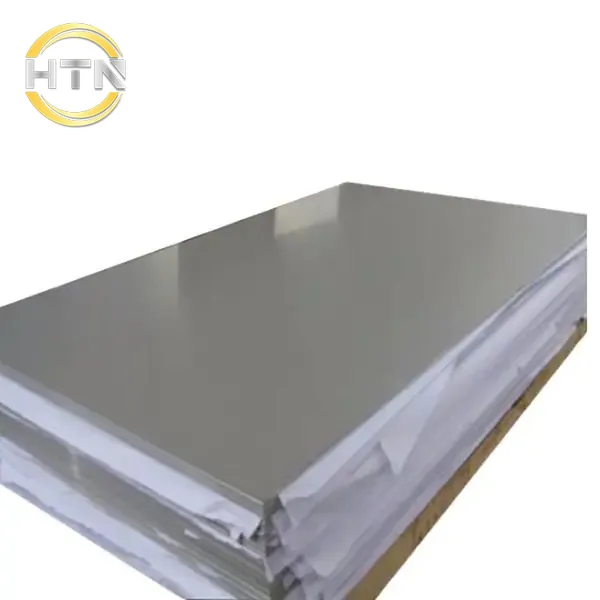

ASTM B265 Grade 12 Titanium Sheet & Plate
Industrial Titanium Wire
HTN supplies titanium wire to ASTM B863 for further processing into formed parts and selected industrial components. Grade, diameter, mechanical properties, supply condition, surface finish and packaging are confirmed against the intended processing requirements.
ASTM B863 Grade 9 Titanium Wire
ASTM B863 Grade 5 Titanium Wire

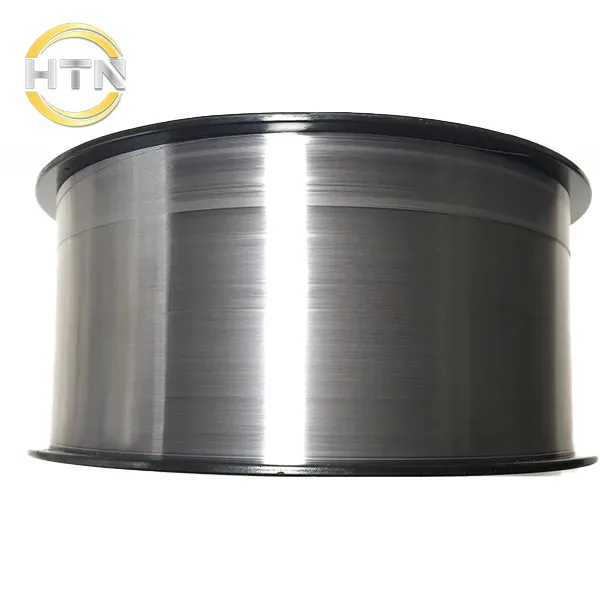

ASTM B863 Grade 2 Titanium Wire
ASTM B863 Grade 1 Titanium Wire
Industrial Titanium Applications
HTN supplies titanium bars, plates, sheets and wire sourced from qualified mills for industrial machining and fabrication. The examples below show typical applications and related material options.
Chemical Processing Equipment
Titanium is used in chemical processing equipment exposed to corrosive media, including tanks, reactors, vessels and selected process components. Material selection depends on the chemical environment, operating temperature, concentration and equipment design.
Related Material Options
Heat Exchangers & Thermal Systems
Titanium plates and sheets are used in selected plate heat exchangers and fabricated heat-transfer components. Grade, thickness and supply condition should be selected for the process medium, operating temperature and fabrication method.
Related Material Options
Marine & Desalination Equipment
Titanium materials are used in selected marine and desalination applications where resistance to seawater corrosion is required. Grade selection depends on the service environment, component design and applicable engineering specifications.
Related Material Options
Energy & Industrial Equipment
Titanium can be used in selected energy and industrial systems where corrosion resistance, weight and operating conditions influence material selection. Bars, plates and sheets provide raw material for machining and fabrication according to equipment requirements.
Related Material Options
Precision Machined Components

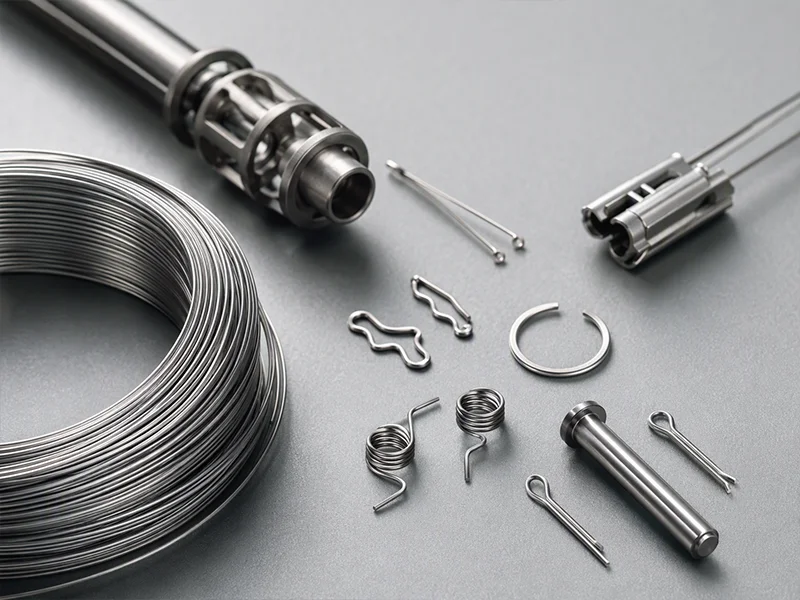

Titanium bars and rods are used as machining stock for industrial components such as shafts, connectors, valve parts and custom-engineered parts. The required grade, dimensions, tolerances and surface condition depend on the component design and service requirements.
Related Material Options
Application examples and related products are provided for reference. Final grade and specification selection should be confirmed by the purchaser’s engineering team for the actual service conditions and applicable design requirements.
Discuss Your Industrial Titanium Requirements
Please provide the required specification and revision, grade, product form, dimensions and tolerances, quantity, supply condition, and delivery destination. Include any inspection, documentation or application requirements so HTN can review supply options and prepare a quotation.
Industrial Titanium Standards & Materials
HTN supplies commercially pure titanium and titanium alloys to the applicable ASTM material specifications. The table below lists product forms and grade options for inquiry. Supply availability and the required specification revision are confirmed for each order.
| Product Form | ASTM Specification | Grade Options | Material Description |
|---|---|---|---|
| Bars & Rods | ASTM B348 | Gr1 / Gr2 / Gr3 / Gr4 | Commercially pure titanium |
| Gr5 | Ti-6Al-4V | ||
| Gr7 | Palladium-alloyed titanium (Ti-Pd) | ||
| Gr9 | Ti-3Al-2.5V | ||
| Gr12 | Ti-0.3Mo-0.8Ni | ||
| Gr23 | Ti-6Al-4V ELI | ||
| Plates & Sheets | ASTM B265 | Gr1 / Gr2 / Gr3 / Gr4 | Commercially pure titanium |
| Gr5 | Ti-6Al-4V | ||
| Gr7 | Palladium-alloyed titanium (Ti-Pd) | ||
| Gr9 | Ti-3Al-2.5V | ||
| Gr12 | Ti-0.3Mo-0.8Ni | ||
| Gr23 | Ti-6Al-4V ELI | ||
| Wire | ASTM B863 | Gr1 / Gr2 / Gr3 / Gr4 | Commercially pure titanium |
| Gr5 | Ti-6Al-4V | ||
| Gr7 | Palladium-alloyed titanium (Ti-Pd) | ||
| Gr9 | Ti-3Al-2.5V | ||
| Gr12 | Ti-0.3Mo-0.8Ni | ||
| Gr23 | Ti-6Al-4V ELI |
Alloy designations indicate nominal composition, not chemical acceptance limits. Available grades, sizes, supply conditions and supplementary requirements are subject to order confirmation. Grade 23 supplied to an industrial ASTM specification is not automatically certified to ASTM F136 or other medical specifications.
Quality & Traceability for Industrial Titanium
HTN coordinates sourcing from qualified mills, reviews material documentation and confirms heat/lot identification and inspection requirements before order acceptance. Order-specific mill test certificates and traceability records are supplied in accordance with the confirmed purchase requirements. Additional independent inspection can be arranged by agreement. Representative third-party reports apply only to the samples and test items identified in each report.
Industrial Titanium FAQ
A1. HTN supplies industrial titanium bars and rods, plates and sheets, and wires for machining, fabrication and corrosion-resistant equipment applications. Available product forms, grades and dimensions are confirmed against each inquiry.
A3. Grade selection depends on the process medium, temperature, corrosion conditions, mechanical requirements and fabrication method. HTN can review the requested material specification and supply options with the mill. Final engineering selection should be confirmed by the purchaser′s design team.
A4. Custom dimensions and selected surface or supply conditions may be available, depending on the product form, grade, technical feasibility and order quantity. Please provide your required dimensions, tolerances and surface condition. Availability, minimum order quantity and lead time will be confirmed in the quotation.
A5. Order-specific mill test certificates and heat/lot traceability records are supplied in accordance with the confirmed purchase requirements. Please state any special certificate, marking or document requirements before order acceptance.
A6. Third-party testing or additional inspection can be arranged by agreement. Please specify the required test methods, sampling plan, acceptance criteria and any laboratory requirements before order placement. Testing scope, cost and lead time are confirmed separately.
A7. No. Grade 23 supplied to ASTM B348/B348M, ASTM B265 or ASTM B863 is not automatically certified to ASTM F136. If medical material is required, please state ASTM F136 and the required product form, dimensions and documentation at the inquiry stage.
Need More Information About Our Quality Documents?
Tell us your material requirements, requested specifications, or documentation needs.
Our team will help confirm the available documents and applicable requirements.
