Titanium Foil

Titanium Foil Manufacturer | CP Titanium & Titanium Alloy Foils

Shaanxi Huatainuo Metal manufactures titanium foil and titanium strip products in commercially pure titanium and titanium alloys for medical, aerospace, electronics, chemical processing, and precision industrial applications. Our titanium foil products are manufactured in accordance with ASTM B265 and ASTM F67 standards, ensuring stable thickness control, surface quality, and material performance. This page outlines our titanium foil and titanium strip product range, material grades, typical applications, and ordering information (sizes, MOQ, lead time) to support technical evaluation and sourcing. Related materials: Titanium Sheet, Titanium Bar, Titanium Wire

---

Titanium Foil & Strip Product Range

Titanium foil is generally supplied as thin flat material, while titanium strip is commonly used for continuous processing, slitting, stamping, and fabrication applications. The table below compares our titanium foil and strip products by grade, standard, and typical size range, so you can match the right material to your application before requesting a quote.

Product	Grade	Standard	Thickness Range*	Width Range*	Best Suited For

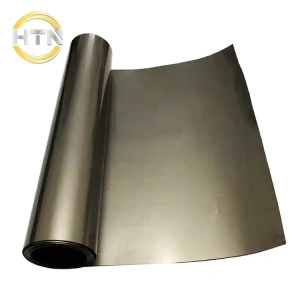

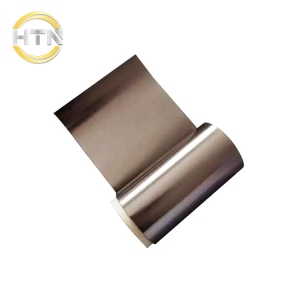

Gr1 Titanium Foil	Grade 1	ASTM B265 / ASTM F67 (medical)	0.025–2mm	10–600mm	Highest ductility/formability — implantable device housings, fine forming & stamping
Gr2 Titanium Foil	Grade 2	ASTM B265	0.025–2mm(0.001–0.079 inch)	10–600mm	Best strength/ductility balance — general medical & industrial precision parts

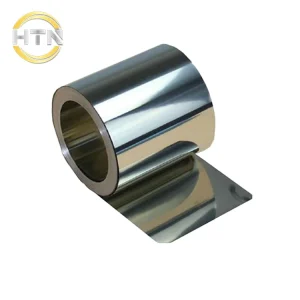

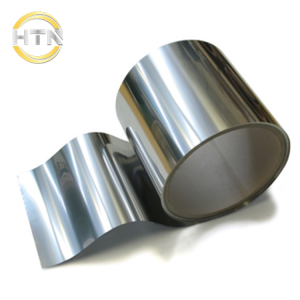

Gr2 Titanium Strip	Grade 2	ASTM B265	0.1–2mm	Up to 610mm	Thin strip for industrial processing, slitting & fabrication
Ti-6Al-4V Titanium Foil	Grade 5	ASTM B265	Under 4.75mm / customizable	Under 610mm / customizable	High-strength alloy foil for aerospace & structural precision components

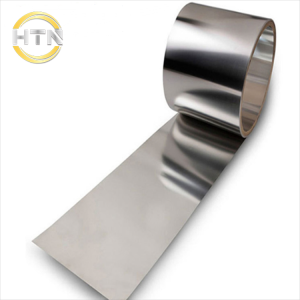

Gr5 Titanium Foil	Grade 5	ASTM B265	0.05–2mm	Up to 610mm	Aerospace & high-load precision components requiring superior strength

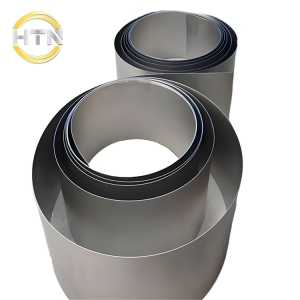

Ti-6Al-4V (Grade 5) Titanium Strip Coil	Grade 5	ASTM B265	0.1–2mm	Custom width, slit-to-size	High-strength coil supply for continuous fabrication lines
Ti-6Al-4V ELI （Grade 23）Titanium Strip Coil	Grade 23	ASTM F136	≤4.76mm （≤0.1874 inch）	≤610mm （≤24.0157 inch）	Orthopedic screws, spinal nail-rod systems, intramedullary nails, dental implants for medical implant; Low-temperature pressure vessels, offshore engineering equipment, high-pressure devices for industry and energy。

Material Grades & Standards

We provide titanium foil in both commercially pure and alloy grades.

Material Grades

• CP Titanium Grade 1
• CP Titanium Grade 2
• Ti-6Al-4V (Grade 5)

Standards

• ASTM B265 – Titanium Sheet, Strip & Foil
• ASTM F67 – Medical Grade Titanium

Material selection depends on application requirements such as strength, corrosion resistance, and biocompatibility.

Key Characteristics of Titanium Foil

• Precise thickness control for thin material applications
• Good surface quality for further processing
• High corrosion resistance in aggressive environments
• Suitable for forming, stamping, and precision fabrication
• Available in both high-strength alloy and CP titanium grades

Typical Applications of Titanium Foil

Titanium foil is widely used in industries requiring thin, lightweight, and corrosion-resistant materials. The table below maps each application area to the grade we recommend, with a direct link to the matching product page.

Industry / Scenario	Typical Use Cases	Recommended Grade
Medical	Implantable device components, surgical & dental materials, medical-grade thin titanium parts	Gr1 / Gr2 Titanium Foil (ASTM F67)
Electronics & Precision Industry	Electronic components and connectors, precision stamping parts, thin conductive or shielding materials	Gr1 / Gr2 Titanium Foil
Energy & Chemical Processing	Battery components, corrosion-resistant linings, chemical-resistant thin structures	Gr2 Titanium Strip (ASTM B265)
Aerospace & High-Performance	Lightweight structural foil components, high-strength thin parts	Ti-6Al-4V (Gr5) Titanium Foil

Each application sector may require different thickness, width, and surface conditions — see the product table above or contact us for grade selection support.

Quality Control & Inspection

All titanium foil and strip products undergo strict inspection procedures:

• Thickness measurement and tolerance control
• Surface quality inspection
• Chemical composition analysis
• Mechanical property testing

Mill Test Certificates (MTC) and inspection reports are available upon request.

Supply & Customization

We support flexible supply for different industries and applications. Customization options include:

• Thickness and width adjustment
• Coil or sheet form supply
• Surface condition requirements (polished, sandblasted, acid washing)
• Standard or application-specific specifications

Frequently Asked Questions

What thickness and width can you supply for titanium foil? Thickness and width vary by grade and product line — see the size table above. We also offer custom thickness, width, and length to match your drawing or application requirement; please share your target specification for a precise quotation. Which grade should I choose — Gr1, Gr2, or Ti-6Al-4V (Gr5)? Gr1 and Gr2 are commercially pure grades with excellent formability and corrosion resistance, suitable for medical, electronics, and general industrial use. Ti-6Al-4V (Gr5) offers higher strength and is typically selected for aerospace and structural precision components. Our team can help confirm the right grade based on your application. What is the minimum order quantity (MOQ)? MOQ depends on whether you require a standard stock size or a custom thickness/width. Please contact our team with your target specification so we can confirm available quantities. What is the typical lead time? Standard lead time is approximately 5–25 days depending on grade, thickness, and order volume. Larger or fully custom orders may require additional time — we will confirm a specific schedule once your specification is finalized. Do you provide material certification? Yes. Mill Test Certificates (MTC) and inspection reports covering chemical composition, mechanical properties, and dimensional tolerances are available upon request. Can titanium foil be supplied in coil form? Yes, we supply both coil and cut-sheet forms depending on your downstream processing needs (e.g., slitting, stamping, or forming).

Why Choose Us as Your Titanium Foil Supplier

• Experience in thin titanium material production
• Stable quality for precision applications
• Support for medical and industrial standards
• Flexible supply for customized requirements

Request Titanium Foil Specifications or Quote

If you are sourcing a titanium foil manufacturer or titanium foil supplier, please provide your required thickness, width, grade, and application details. Request a Quote for Titanium Foil Our team will respond with material recommendations, sizing, MOQ, and lead time information.
