Titanium Sheet Manufacturer for Industrial & Medical Applications
As a reliable
titanium sheet manufacturer, we supply a full range of commercially pure and alloy titanium sheets and plates for corrosion-resistant and high-performance applications.
Our production covers
CP titanium sheet (Grade 1–4) and titanium alloy plates, manufactured in accordance with international standards and tailored to specific industry requirements.
This page outlines our capabilities as a
titanium plate manufacturer, including available grades, size ranges, and application-driven recommendations to help you select the right product before requesting a quote.
Related materials: Titanium Bar, Titanium Wire, Titanium Tube
Titanium Sheet & Plate Product Range — Grade Comparison
The table below compares our five titanium sheet/plate products by grade, standard, and confirmed size range, so you can match the right material to your industry and application before requesting a quote. Click any product name to view full specifications.
| Product |
Grade |
Standard |
Size Range (T × W × L) |
Key Characteristics |
Best Suited For |

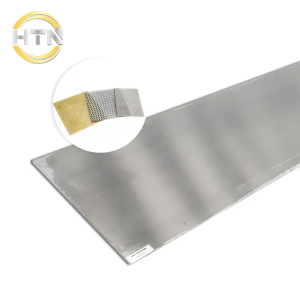

| Gr2 Titanium Sheet ASTM F67
(also covers Gr1) |
Gr1 / Gr2 (CP) |
ASTM F67, ISO 5832-2 |
0.6–1.0mm T × 280–350mm W × 1000–2000mm L |
Highest ductility & formability among CP grades; excellent corrosion resistance |
Cranial/skull mesh plates, implant-grade thin sheet, general medical fabrication |

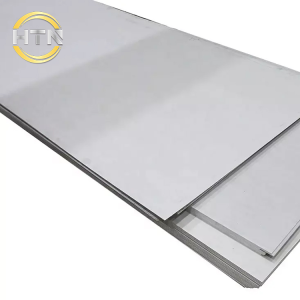

| Gr3 Titanium Plates ASTM F67
(also covers Gr4, Gr5 ELI) |
Gr3 / Gr4 / Gr5 ELI |
ASTM F67 / F136, ISO 5832-2/3 |
0.6–6.5mm T × 300–400mm W × 1000–1200mm L |
Higher strength than Gr1/Gr2 CP grades; suitable for internal fixation under load |
Bone lock plates, internal bone fixation, orthopedic fixation devices |

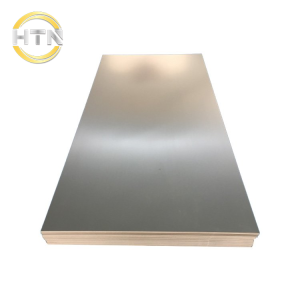

| Gr4 Titanium Plate ISO 5832-2/3
(custom Gr3/Gr4/Gr5/ELI) |
Gr3 / Gr4 / Gr5 / ELI |
ASTM F136/F67, ISO 5832-2/3 |
Gr5 & ELI: 1.0–6.0mm T; Gr3 & Gr4: 8.0–12.0mm T (300–400mm W × 1000–1200mm L) |
Hot-rolled, custom-cut formats for non-standard part geometries |
Aerospace structural components, custom medical & special-purpose parts |

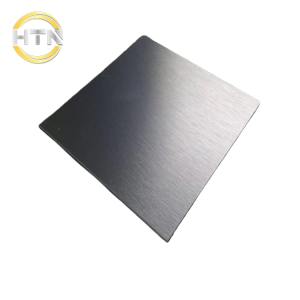

| Ti6Al4V (Grade 5) Titanium Plate ASTM F136 |
Gr5 / Gr5 ELI |
ASTM F136, ISO 5832-3 |
1.0–12.0mm T × 300–1000mm W × 1000–2000mm L |
High strength-to-weight ratio; stable performance for load-bearing implants |
Orthopedic, dental & surgical implant components requiring higher load capacity |

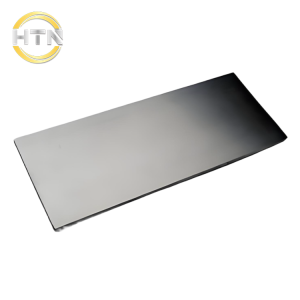

| Ti6Al4V ELI Titanium Sheet ISO5832-3 |
Gr23 (ELI) / Gr5 |
ASTM F136, ISO 5832-3 |
1.2–20mm T × 300–500mm W × 1000–1200mm L |
Widest thickness range in our plate line; extra-low interstitials for fracture-critical use |
Joint reconstruction, trauma plates, thicker structural implant components |
All sizes above are taken directly from current product specifications; please confirm exact thickness/width/length for your project with our sales team, as availability may vary by batch.
Titanium Sheet & Plate Manufacturing Capabilities
As an experienced
titanium sheet manufacturer, we provide flat-rolled titanium products with controlled thickness, surface quality, and mechanical performance.
Production scope includes:
- Cold rolled and hot rolled titanium sheets
- Titanium plates for structural and pressure applications
- Precision-cut sheet formats based on drawings
- Surface finishing: pickled, polished, or customized
Supply formats:
- Sheet (thin gauge, ~0.6–1.0mm — see Gr1/Gr2 above)
- Plate (medium to thick sections, up to 20mm — see Gr23 ELI above)
- Custom cut sizes upon request
Our manufacturing process ensures stable material performance for forming, welding, and long-term service environments.
Available Grades & Standards
We supply both
CP titanium sheet and titanium alloy plates to meet different performance requirements.
Material Grades
- CP Titanium Grade 1 / 2 / 3 / 4
- Ti-6Al-4V (Grade 5)
- Ti-6Al-4V ELI (Grade 23, for medical applications)
Standards
- ASTM B265 – Titanium Sheet and Plate
- ASTM F67 – Medical Grade CP Titanium
- ASTM F136 / ISO 5832-3 – Medical Titanium Alloy
- Other international standards available upon request
Material selection is supported based on corrosion resistance, formability, and mechanical strength requirements — see the comparison table above for grade-by-grade guidance.
Application-to-Grade Quick Reference
Use the table below to jump directly from your industry or use case to the recommended grade and product page.
| Industry / Scenario |
Typical Use Cases |
Recommended Product |
| Chemical Processing & Desalination |
Equipment linings, heat exchanger plates, desalination systems, environmental protection equipment |
Gr2 Titanium Sheet (CP, ASTM F67) |
| Medical — Cranial & Mesh Implants |
Skull plates, cranial reconstruction, mesh implants |
Gr1 / Gr2 Titanium Sheet |
| Medical — Orthopedic Fixation |
Bone plates, internal fixation, bone lock plates |
Gr3 / Gr4 / Gr5 ELI Titanium Plates |
| Medical — Joint & Trauma |
Joint reconstruction, trauma plates, thicker load-bearing implant components |
Ti-6Al-4V ELI Titanium Sheet |
| Medical — Surgical & Dental Implants |
Orthopedic, dental and surgical device manufacturing requiring higher strength |
Ti6Al4V (Grade 5) Titanium Plate |
| Aerospace & Custom Structural Parts |
Load-bearing aerospace components, custom-cut special-purpose plates |
Gr4 Titanium Plate (custom Gr3/Gr4/Gr5/ELI) |
| Industrial Equipment |
High-stress, corrosion-resistant industrial parts |
Gr4 Titanium Plate |
Titanium alloy plates such as Ti-6Al-4V provide higher strength compared to CP grades while maintaining good corrosion resistance; CP Grade 2 remains the most commonly specified sheet for general industrial use.
Quality Control & Material Traceability
All titanium sheets and plates are produced under controlled processes to ensure consistency and compliance.
Quality control includes:
- Chemical composition verification
- Mechanical property testing
- Surface inspection
- Dimensional tolerance control
- Heat number traceability
Mill test certificates (EN 10204 3.1) and inspection documentation are available upon request.
Customization & Project Support
We support project-based procurement with flexible manufacturing capabilities.
Available customization options:
- Thickness and size customization (see size ranges in the comparison table above)
- Surface condition requirements (polished, pickled, hot- or cold-rolled surface)
- Application-specific material selection
- Cutting and pre-processing services
Technical drawings and application details are recommended for accurate quotation and production alignment.
Why Choose Us as Your Titanium Sheet Manufacturer
- Stable production capacity for industrial and medical supply
- Experience in corrosion-resistant and high-performance applications
- Flexible customization based on project requirements
- Reliable documentation and export support
We focus on providing consistent material quality to support downstream fabrication and long-term service performance.
Request Titanium Sheet & Plate Specifications
If you are sourcing a titanium sheet manufacturer or titanium plate manufacturer, please contact us with your required grade, dimensions, and application details.
Request a Quotation for Titanium Sheets & Plates
Our team will respond with material recommendations and quotation support.
