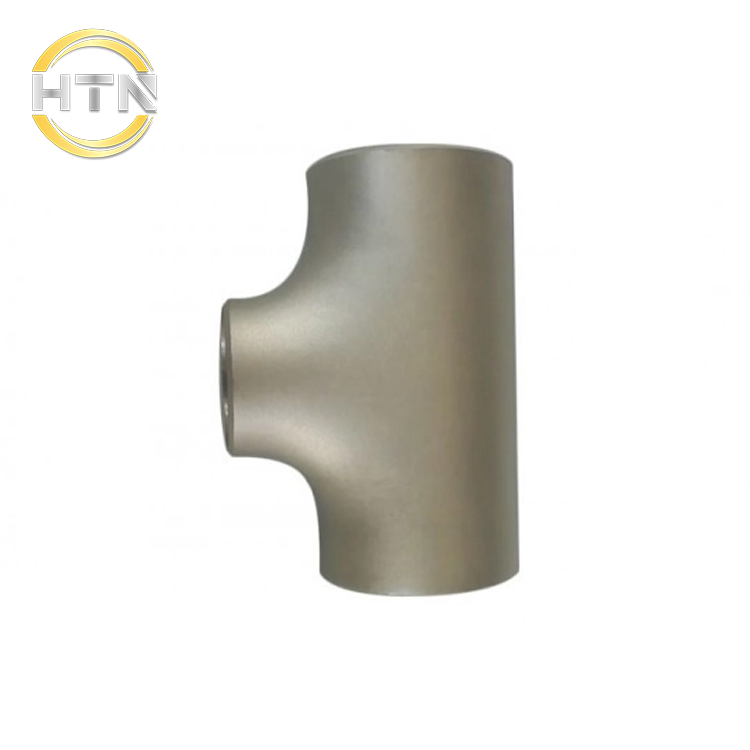

ASTM B363 Gr2 Titanium Pipe Tee Buttweld Fitting Equal & Reducing
Grade: Gr1,GR2,GR3,GR5,GR7,GR9,GR12.
Standard： ASME B16.9.
Size： Outer diameter DN10- 302/customizable.
Wall thickness： 1-15MM Sch5s-Sch160.
Shape： Equal Tee (T/S), Reducing Tee (T/R).
|
|
Details

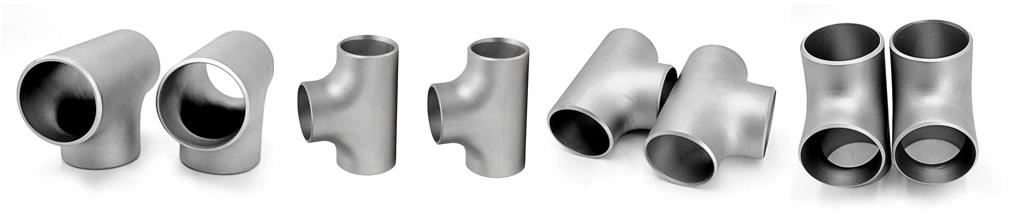

Titanium Tee is a type of pipe joint used in the main pipe to be branched, with equal tee and reducing tee. Lasting titanium carries a wide range of straight Tees and Crosses and many other Titanium Pipe Fittings for the Industrial Market. Dimensional tolerances conform to ASME B16.9. Titanium fitting wall thicknesses conform with standard schedule 10S and 40S ASME B36.19M wall pipe. The material according to ASTM B363.
PRODUCT PARAMETER
| Product | Titanium Tee |
| Type | Equal Tee, Reducing Tee, positive tee, inclined tee, threaded tee, clip tee, socket tee |
| Materia | Pure titanium or Titanium alloy Gr1,GR2,GR3,GR5,GR7,GR9,GR12 |
| Specifications | Outer diameter DN10- 302/customizable |
| Wall thickness | 1-15MM Sch5s-Sch160 |
| Shape | Equal Tee (T/S), Reducing Tee (T/R) |
| Standard | ASME B16.9 |
| Surface finished | Sand blasting, Polishing, Pickling |
| Quality control | 100% of the X-ray detection (RT)/100% of Surface penetrant inspection (PT) |
| Application | Chemical, Petroleum, Machinery, Industry, etc |
Features of Titanium Tee
Excellent corrosion resistance in many media.
Low density, high strength and low weight.
The surface is smooth and free of dirt, and the fouling coefficient is greatly reduced.
Application of Titanium Tee
Titanium tees are used in a variety of applications including for use in titanium heat exchangers, condensers and evaporators.
Titanium Tee Manufacturer And Supplier
Lasting is a leading manufacturer and supplier of Titanium Fittings, in a wide range of sizes grades and specifications. We also supply Titanium Plate,Titanium Round Bar,Titanium Wire,Titanium Drawing and other titanium products.
