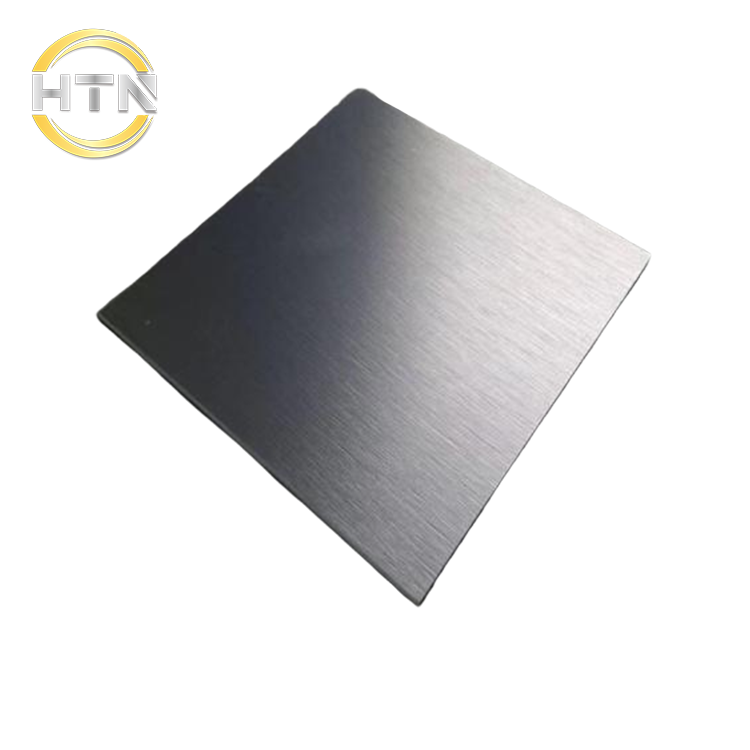

Ti6Al4V (Grade 5) Titanium Plate ASTM F136
Specialized in producing the Gr 5 ELI titanium plate for medical equipment with the strict control on the production process and the test of the size, chemical composition and mechanical properties.
|
|
Details
The medical titanium plate made from Ti-6Al-4V (Grade 5 / ELI) is designed for implant-grade applications requiring high strength, corrosion resistance, and long-term biocompatibility.
Manufactured in accordance with ASTM F136 and ISO 5832-3, this medical titanium plate is suitable for orthopedic, dental, and surgical device manufacturing.
This product is widely used where precision, material stability, and traceability are required in medical applications.
Features
| Material | Gr 5, Gr 5 ELI, Ti-6Al-4V ELI |
| Standard | ASTM F136, IS05832-3 |
| Size | (1.0~12.0) T * (300~1000) W * (1000~2000 )L mm |
| Tolerance | 0.05-0.2mm |
| State | M, Annealed |
| Surface Condition | Polished, Customized surface |
| Roughness | Ra<3.2 um |
Key Characteristics of Medical Titanium Plate
- High strength-to-weight ratio for load-bearing implants
- Stable mechanical performance for long-term use
- Good corrosion resistance in biological environments
- Controlled surface condition for machining and finishing
- Suitable for precision medical device manufacturing
These properties make the medical titanium plate appropriate for applications requiring structural reliability and biocompatibility.
Key Characteristics of Medical Titanium Plate
- High strength-to-weight ratio for load-bearing implants
- Stable mechanical performance for long-term use
- Good corrosion resistance in biological environments
- Controlled surface condition for machining and finishing
- Suitable for precision medical device manufacturing
These properties make the medical titanium plate appropriate for applications requiring structural reliability and biocompatibility.
Manufacturing & Inspection Process
All medical titanium plates are produced under controlled inspection procedures to ensure dimensional accuracy and material integrity.
Surface Inspection
- 100% surface defect inspection
- Detection of cracks, dents, and surface imperfections
Dimensional Control
- Infrared measurement systems for thickness accuracy
- Strict tolerance monitoring and deviation control
Non-Destructive Testing
- Eddy current testing for surface and near-surface defects
- Ultrasonic inspection for internal metallurgical integrity (AMS 2631 reference)
Straightness & Flatness Control
- Controlled deviation within specified tolerance range
- Visual and manual inspection during processing
Microstructure & Mechanical Testing
Each medical titanium plate undergoes material verification to ensure compliance with implant standards.
Testing includes:
- Tensile strength and yield strength
- Elongation and reduction of area
- Microstructure evaluation (A1–A5 grading)
- Metallurgical structure observation under microscopy
Quality certificates and third-party inspection reports are available upon request.
Material Advantages for Medical Use
Ti-6Al-4V (Grade 5 / ELI) is one of the most widely used materials for medical titanium plate applications due to:
- Low density combined with high strength
- Proven use in implantable medical devices
- Compatibility with precision machining processes
- Reliable performance in orthopedic and dental applications
Request Medical Titanium Plate Specifications
If you are sourcing a medical titanium plate for implant or surgical applications, please provide your required thickness, dimensions, and application details.
Request Technical Datasheet
Request a Quotation
Our team will support your project with material specifications and production information.
