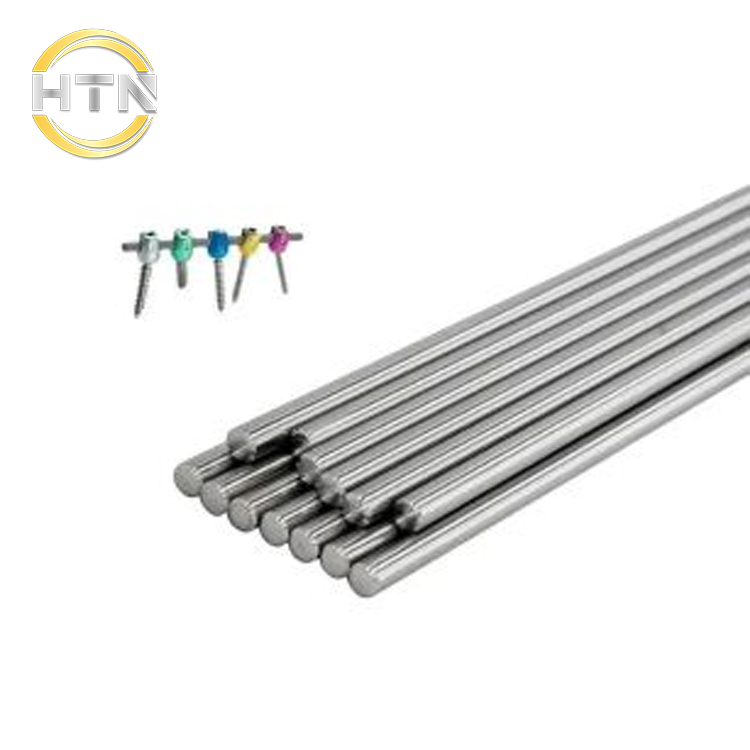

Ti-6Al-4V ELI Titanium Bar ASTM F136
ASTM F136 Ti-6Al-4V ELI Titanium Bar / Rod is our main product and it’s also called Gr5 titanium bar / rod. Since established in 2004, specialized in producing the best quality medical titanium bars / rods. Now has been the TOP 3 suppliers, who produce the medical titanium bars / rods to Chinese titanium implants manufactures in China. has passed the ISO 13485:2016 and ISO 9001:201 ASTM F136 Ti-6Al-4V ELI Titanium Bar (Rod) Standard: ASTM F136, ISO 5832-3 Grade: Ti-6Al-4V ELI Diameter: 3-120mm Tolerance: h7, h8 or customized Surface: Polished Straightness: Within 1.5‰ Characteristic: 1.Physical properties are controllable and customized. 2.Suitable for bone screws, spinal screws, hip and knee joint and dental implants
|
|
Details
The Ti-6Al-4V ELI titanium bar is a high-performance medical grade titanium bar manufactured in compliance with ASTM F136 and ISO 5832-3 standards.
It is specifically developed for implant-grade applications requiring high strength, fatigue resistance, and biocompatibility.
This ASTM F136 titanium bar is widely used by medical device manufacturers for orthopedic, dental, and surgical implant components.
Product Overview
- Product Name: Medical Grade Titanium Bar / Rod
- Material: Ti-6Al-4V ELI (Grade 23)
- Standards: ASTM F136, ISO 5832-3
- Diameter Range: 3–120 mm
- Tolerance: h7, h8 or customized
- Surface Condition: Polished
- Straightness: ≤ 1.5‰
As a specialized supplier of Ti-6Al-4V ELI titanium bar, we provide consistent material performance suitable for precision machining and long-term implant use.
Specifications
| Chemical compositions | ||||||||
| Grade | Ti | Al | V | Fe,max | C,max | N,max | H,max | O,max |
| Ti-6Al-4V EL | Bal | 5.5~6.5 | 3.5~4.5 | 0.25 | 0.08 | 0.05 | 0.012 | 0.13 |
| Mechanical properties | |||||
| Grade | Diameter(mm) | Tensile Strength (Rm/Mpa) ≥ | Yield Strength (Rp0.2/Mpa) ≥ | Elongation (A%) ≥ | Reduction of Area (Z%) ≥ |
| Ti-6Al-4V ELI | <44.45 | 860 | 795 | 10 | 25 |
| Ti-6Al-4V ELI | 44.45-63.5 | 825 | 760 | 8 | 20 |
| Ti-6Al-4V ELI | 63.5-101.6 | 825 | 760 | 8 | 15 |
Key Characteristics of Ti-6Al-4V ELI Titanium Bar
- Controlled chemical composition with low interstitial elements
- Stable mechanical properties for load-bearing implant components
- High fatigue resistance for dynamic biological environments
- Good machinability for precision medical parts
- Reliable performance in long-term implantation conditions
This medical grade titanium bar is suitable for applications requiring both structural integrity and biological safety.
biological safety.
Application of ASTM F136 Titanium Bar
The ASTM F136 titanium bar is commonly used in high-precision medical and implantable devices.
Typical applications include:
- Orthopedic implants (bone screws, bone plates)
- Spinal fixation systems (spinal rods, pedicle screws)
- Hip and knee joint components
- Dental implants and abutments
- Surgical instruments and implant connectors
These applications require strict control of mechanical properties and material traceability, which this Ti-6Al-4V ELI titanium bar is designed to meet.
Quality Control & Traceability
All medical grade titanium bars are produced under strict quality control processes to ensure compliance with implant standards.
Quality assurance includes:
- Raw material selection from high-grade titanium sponge
- Surface inspection using turbine detection (≥ 3 mm flaws)
- Internal defect inspection via ultrasonic testing
- Full-length dimensional inspection using infrared measurement
- Chemical and mechanical testing by third-party laboratories
Each Ti-6Al-4V ELI titanium bar is fully traceable:
- Heat number marked on each bar
- Batch-level production tracking
- Test reports provided with shipment
Manufacturing Capability
We supply ASTM F136 titanium bars with controlled tolerance and microstructure suitable for medical applications.
- High-precision grinding available (up to h7 tolerance)
- Stable microstructure control (A3 level)
- Consistent mechanical performance for implant use
These capabilities ensure that the material meets the requirements of high-load and fatigue-sensitive implant components such as spinal systems.
Request Medical Grade Titanium Bar Specifications
If you are sourcing a medical grade titanium bar, Ti-6Al-4V ELI titanium bar, or ASTM F136 titanium bar for implant or surgical applications, please contact us with your specifications.
📩 Request Technical Datasheet
📩 Request a Quotation
Our team will support your project with material data and production capabilities.
