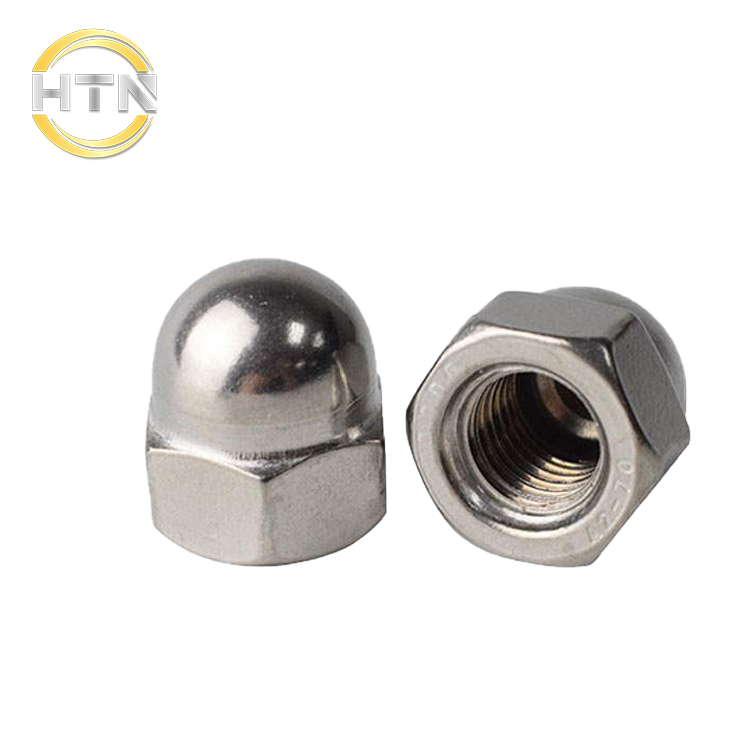

DIN 1587 Titanium Acorn Nuts Domed Cap for Safety & Aesthetics
Material: Grade 5 Titanium (Ti-6Al-4V) .
Tensile Strength: ≥ 900 MPa .
Thread Sizes: M3 to M20 (customizable).
|
|
Details
Our products represent the pinnacle of fastener technology, combining the exceptional properties of titanium with precision engineering. These lightweight yet incredibly strong fasteners are designed to excel in applications where traditional materials fall short. Whether you’re in aerospace, medical devices, or high-performance automotive industries, our products deliver unparalleled reliability and longevity.
Technical Specifications
Material: Grade 5 Titanium (Ti-6Al-4V)
Tensile Strength: ≥ 900 MPa
Yield Strength: ≥ 830 MPa
Elongation: ≥ 10%
Hardness: 33-37 HRC
Temperature Range: -250°C to 600°C
Thread Sizes: M3 to M20 (customizable)
Finish: Natural, Anodized, or Passivated
| Thread Size | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | ||||
| D | ||||||||||||||||
| P | Coarse thread | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | |||
| Fine thread -1 | / | / | / | 1 | 1.25 | 1.5 | 1.5 | 1.5 | 2 | 2 | 2 | 2 | ||||
| Fine thread -2 | / | / | / | / | 1 | 1.25 | / | / | 1.5 | 1.5 | 1.5 | / | ||||
| da | max | 4.6 | 5.75 | 6.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 19.5 | 21.6 | 23.7 | 25.9 | |||
| min | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | ||||
| dk | min=nominal size | 6.5 | 7.5 | 9.5 | 12.5 | 15 | 17 | 20 | 23 | 26 | 28 | 33 | 34 | |||
| dw | min | 5.9 | 6.9 | 8.9 | 11.6 | 14.6 | 16.6 | 19.6 | 22.5 | 24.9 | 27.7 | 31.4 | 33.3 | |||
| e | Grade A | min | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.35 | 26.75 | 30.14 | 33.53 | 37.72 | 39.98 | ||
| Grade B | min | 7.5 | 8.63 | 10.89 | 14.2 | 17.59 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | 37.29 | 39.55 | |||
| x | Coarse thread | max | 1.4 | 1.6 | 2 | 2.5 | 3 | 3.5 | 4 | 4 | 5 | 5 | 5 | 6 | ||
| Fine thread | max | / | / | / | 2 | 2.5 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | |||
| G | Coarse thread | max | 2.75 | 3 | 3.7 | 4.9 | 5.6 | 6.4 | 7.3 | 7.3 | 9.3 | 9.3 | 9.3 | 10.7 | ||
| Fine thread | max | / | / | / | 3.7 | 4.9 | 5.6 | 5.6 | 5.6 | 7.3 | 7.3 | 7.3 | 7.3 | |||
| h | max=nominal size | 8 | 10 | 12 | 15 | 18 | 22 | 25 | 28 | 32 | 34 | 39 | 42 | |||
| Grade A | min | 7.64 | 9.64 | 11.57 | 14.57 | 17.57 | 21.48 | 24.48 | 27.48 | 31.38 | 33.38 | 38.38 | 41.38 | |||
| Grade B | min | 7.42 | 9.42 | 11.3 | 14.3 | 17.3 | 21.16 | 24.16 | 27.16 | 31 | 33 | 38 | 41 | |||
| m | max | 3.2 | 4 | 5 | 6.5 | 8 | 10 | 11 | 13 | 15 | 16 | 18 | 19 | |||
| min | 2.9 | 3.7 | 4.7 | 6.14 | 7.64 | 9.64 | 10.3 | 12.3 | 14.3 | 14.9 | 16.9 | 17.7 | ||||
| mw | min | 2.32 | 2.96 | 3.76 | 4.91 | 6.11 | 7.71 | 8.24 | 9.84 | 11.44 | 11.92 | 13.52 | 14.16 | |||
| SR | ≈ | 3.25 | 3.75 | 4.75 | 6.25 | 7.5 | 8.5 | 10 | 11.5 | 13 | 14 | 16.5 | 17 | |||
| s | max=nominal size | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | |||
| Grade A | min（Grade A） | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 33.38 | 35.38 | |||
| Grade B | min（Grade B） | 6.64 | 7.64 | 9.64 | 12.57 | 15.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 33 | 35 | |||
| t | max | 5.74 | 7.79 | 8.29 | 11.35 | 13.35 | 16.35 | 18.35 | 21.42 | 25.42 | 26.42 | 29.42 | 31.5 | |||
| min | 5.26 | 7.21 | 7.71 | 10.65 | 12.65 | 15.65 | 17.65 | 20.58 | 24.58 | 25.58 | 28.58 | 30.5 | ||||
| w | min | 2 | 2 | 2 | 2 | 2 | 3 | 4 | 4 | 5 | 5 | 5 | 6 | |||
| per 1000 units≈kg | Coarse thread | 1.5 | 2.2 | 4.6 | 8.9 | 20.1 | 28.3 | 39.7 | 54.3 | 79.1 | 104 | / | 216 | |||
| Fine thread | / | / | / | 11 | 20.1 | 28.3 | 39.7 | 54.3 | 95 | 104 | / | 216 | ||||
