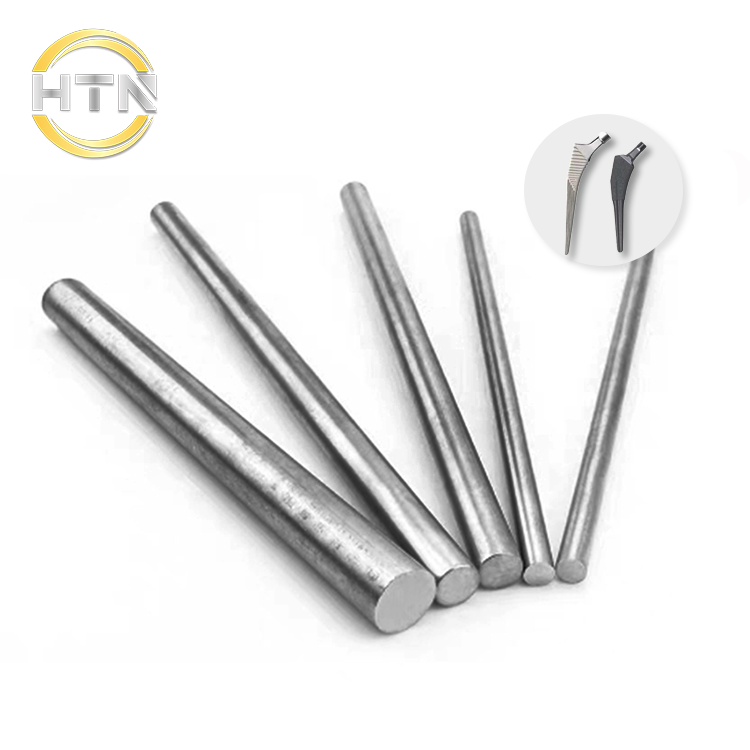

Medical Titanium Rods & Bars for Joint Prosthesis Materials
Grade: Gr5, Ti-6Al-4V, Gr23, Ti-6Al-4V ELI
Standard: ASTM F136, ISO 5832-3
Regular Sizes: Φ10, Φ13, Φ14, Φ14.2, Φ14.5mm
Characteristic: Shrinkage≤ 0.03mm, and the metallography can be controlled.
|
|
Details
As a leading global titanium bar supplier, Shaanxi Huatainuo specializes in providing medical-grade and industrial titanium bars. We offer a comprehensive range of products, from Gr1 to Gr4 pure titanium bars to Ti-6Al-4V ELI titanium alloy bars, all compliant with ASTM F136 and ISO 5832-3 standards. Our commitment to quality, coupled with large-scale stock and competitive pricing, ensures a reliable supply for your most demanding applications.
1. Chemical compositions（化学成分）
| Grade | Ti | Al | V | Fe, max | C, max | N, max | H, max | O, max |
| Ti-6Al-4V ELI | Bal | 5.5-6.5 | 3.5-4.5 | 0.25 | 0.08 | 0.05 | 0.012 | 0.13 |
| Grade 5 (Ti-6Al-4V) | Bal | 5.5-6.75 | 3.5-4.5 | 0.3 | 0.08 | 0.05 | 0.015 | 0.2 |
2. Mechanical properties（机械性能）
| Grade | Condition | Tensile Strength (Rm/Mpa) ≥ | Yield Strength (Rp0.2/Mpa) ≥ | Elongation (A%) ≥ | Reduction of Area (Z%) ≥ |
| Ti-6Al-4V ELI | M | 860 | 795 | 10 | 25 |
| Grade 5 (Ti-6Al-4V) | M | 860 | 780 | 10 | / |
Precision-Engineered Ti-6Al-4V ELI Titanium Bars for Spinal Implants. We understand that quality is non-negotiable. That’s why our bars are consistently produced with a controlled microstructure (A3) and a minimum tensile strength of 1100 MPa, providing the proven reliability required for spine screws and other critical spinal devices.
How Huatainuo Ensures Uncompromising Quality in Medical Titanium Bars?
At Huatainuo, the quality of our medical-grade titanium bars is paramount, especially for critical applications like spinal implants. Our rigorous, multi-stage quality control system guarantees every bar meets the highest international standards. Here’s how we do it:
- Premium Raw Material Sourcing We begin with the finest O-grade undersized titanium sponge, ensuring the precise chemical composition required for superior biocompatibility and performance.
- Advanced Triple Vacuum Melting To achieve a uniform and pure microstructure, we employ a triple vacuum melting process using state-of-the-art German ALD furnaces. This eliminates impurities and ensures exceptional material integrity.
- Precision Thermo-Mechanical Processing Our closely controlled rolling and annealing processes are fine-tuned to deliver the optimal mechanical properties, including tensile strength and fatigue resistance, essential for medical devices.
- Comprehensive Testing & Verification
Every bar undergoes a battery of non-destructive tests:
- Internal Integrity: Ultrasonic and Eddy Current flaw detectors to identify any subsurface defects.
- Surface Perfection: Automated ODE optical surface detection combined with meticulous manual inspection.
- Dimensional Accuracy: Infra-ray diameter gauges to verify that tolerances are strictly maintained.
This end-to-end control over every production step is what makes Huatainuo a trusted partner for the most demanding medical applications.
