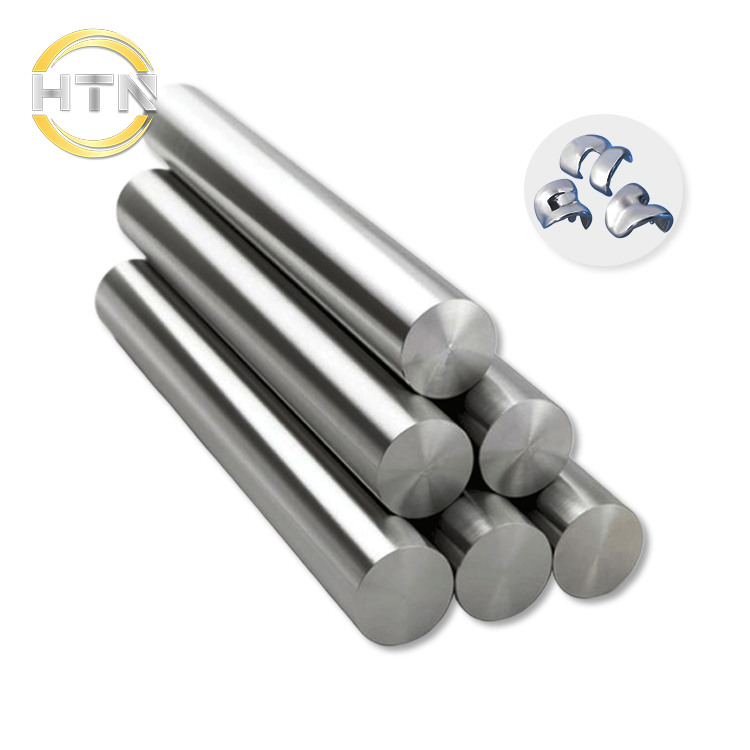

Ti-6Al-4V Titanium Rods ASTM F136
Grade: Gr5, Ti-6Al-4V, Gr23, Ti-6Al-4V ELI .
Standard: ASTM F136, ISO 5832-3 .
Regular Sizes: Φ10, Φ13, Φ14, Φ14.2, Φ14.5mm .
Characteristic: Shrinkage≤ 0.03mm, and the metallography can be controlled. .
|
|
Details
Product Overview
- Product Name: ASTM F136 Titanium Rod
- Material Grades: Ti-6Al-4V (Grade 5), Ti-6Al-4V ELI (Grade 23)
- Standards: ASTM F136, ISO 5832-3
- Typical Sizes: Φ10, Φ13, Φ14, Φ14.2, Φ14.5 mm
- Dimensional Control: Shrinkage ≤ 0.03 mm
- Microstructure: Controlled
As a supplier of titanium rods, we provide materials suitable for precision machining and implant-grade applications.
The ASTM F136 titanium rod is a high-performance titanium alloy material designed for medical and implantable applications.
Manufactured in accordance with ASTM F136 and ISO 5832-3 standards, it provides stable mechanical properties, controlled microstructure, and reliable biocompatibility.
This ASTM F136 titanium rod is widely used in orthopedic implants, spinal systems, and precision medical components requiring consistent material performance.
1. Chemical compositions（化学成分）
| Grade | Ti | Al | V | Fe, max | C, max | N, max | H, max | O, max |
| Ti-6Al-4V ELI | Bal | 5.5-6.5 | 3.5-4.5 | 0.25 | 0.08 | 0.05 | 0.012 | 0.13 |
| Grade 5 (Ti-6Al-4V) | Bal | 5.5-6.75 | 3.5-4.5 | 0.3 | 0.08 | 0.05 | 0.015 | 0.2 |
2. Mechanical properties（机械性能）
| Grade | Condition | Tensile Strength (Rm/Mpa) ≥ | Yield Strength (Rp0.2/Mpa) ≥ | Elongation (A%) ≥ | Reduction of Area (Z%) ≥ |
| Ti-6Al-4V ELI | M | 860 | 795 | 10 | 25 |
| Grade 5 (Ti-6Al-4V) | M | 860 | 780 | 10 | / |
Precision-Engineered Ti-6Al-4V ELI Titanium Bars for Spinal Implants. We understand that quality is non-negotiable. That’s why our bars are consistently produced with a controlled microstructure (A3) and a minimum tensile strength of 1100 MPa, providing the proven reliability required for spine screws and other critical spinal devices.
Typical Applications
The ASTM F136 titanium rod is used in critical medical and surgical applications where material performance and traceability are essential.
Application areas include:
- Spinal implant systems: spinal rods, pedicle screws
- Orthopedic implants: bone screws, fixation devices
- Joint components: hip and knee implant parts
- Dental implants: implant fixtures and connectors
- Surgical instruments: precision medical tools
These applications require consistent material quality and controlled processing conditions.
Quality Control & Process Assurance
All ASTM F136 titanium rods are produced under a controlled multi-stage manufacturing and inspection process.
Raw Material Control
- Selection of high-grade titanium sponge
- Controlled chemical composition for medical use
Melting Process
- Vacuum melting process to ensure material purity
- Uniform internal structure for consistent performance
Thermo-Mechanical Processing
- Controlled rolling and annealing
- Mechanical properties optimized for implant applications
Inspection & Testing
- Ultrasonic and eddy current testing for internal defects
- Surface inspection through automated and manual methods
- Diameter measurement using precision instruments
Each rod undergoes systematic inspection to ensure compliance with required standards.
Traceability & Documentation
Full traceability is maintained for every ASTM F136 titanium rod:
- Heat number identification
- Batch-level production tracking
- Chemical and mechanical test reports available
Documentation supports procurement requirements for medical device manufacturing.
Manufacturing Capability for Medical Titanium Rods
We supply ASTM F136 titanium rods with controlled dimensions and microstructure suitable for demanding medical applications such as spinal implant systems.
- Consistent dimensional control for precision machining
- Microstructure control for fatigue-sensitive components
- Stable performance under high-load conditions
These capabilities support applications such as spinal fixation devices and other implantable components.
Request ASTM F136 Titanium Rod Specifications
If you are sourcing ASTM F136 titanium rods for medical or implant applications, please provide your required size, grade, and application details.
📩 Request Technical Datasheet
📩 Request a Quotation
Our team will respond with material data and supply information to support your project.
