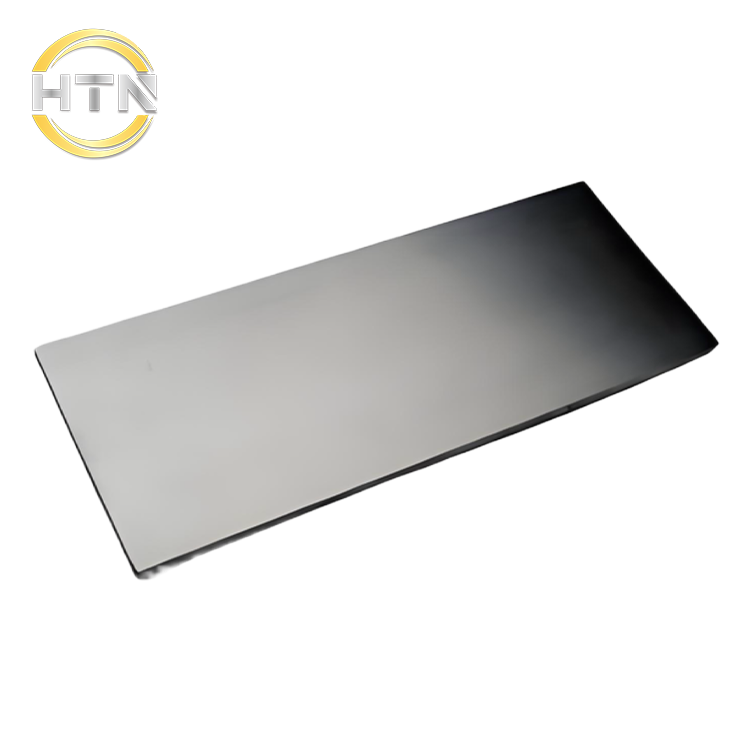

Ti6Al4V ELI Titanium Alloy for Joint Reconstruction & Trauma Plates
ASTM F136/ISO5832-3 medical titanium alloy sheet Gr5, Gr23, Ti6Al4V Eli with the strict control on the production process and the test of the size, chemical composition and mechanical properties.
|
|
Details
Features
| Material | Ti-6Al-4V ELI; Gr23; Gr5 |
| Standard | ASTM F136, IS05832-3 |
| Size | (1.2~20) T * (300~500) W * (1000~1200 )L mm |
| Thickness tolerance | 0.08-0.8mm |
| State | M, Annealed |
| Surface | Polishing or Pickled |
| Roughness | Ra≤3.2um (polished) |
Product Inspection
1.With mill test certificate, accept the third party test.
2.100% ultrasonic or turbine flaw detection to eliminate metallurgical defects and non-ferrous impurities.
3.Characteristic: Stable physical properties, metallographic structure is better than the standard requirements, high strength or high plasticity can be customized.
Specifications
| Chemical compositions | ||||||||
| Grade | Ti | Al | V | Fe,max | C,max | N,max | H,max | O,max |
| Ti-6Al-4V ELI/Gr23 | Bal | 5.5~6.5 | 3.5~4.5 | 0.25 | 0.08 | 0.05 | 0.012 | 0.13 |
| Gr5 | Bal | 5.5~6.5 | 3.5~4.5 | 0.30 | 0.08 | 0.05 | 0.015 | 0.20 |
| Mechanical properties | ||||
| Grade | Tensile Strength (Rm/Mpa) ≥ | Yield Strength (Rp0.2/Mpa) ≥ | Elongation (A%) ≥ | Reduction of Area (Z%) ≥ |
| Ti-6Al-4V ELI/Gr23 | 860 | 795 | 10 | 25 |
| Gr5 | 860 | 795 | 8 | 20 |
Produce the medical titanium plate with the 650 Rolling Mill, to control the thickness tolerance, straightness and microstructure better. Our annual output of medical titanium plate is 300 tons. Marking the heat number, grade, size and rolling direction on the sheets.
We specializes in producing medical titanium plate. The ASTM F136 material has low density but high good properties, it is widely used for Skull plate, internal bone fixation plate and medical equipment. We take the quality as the first important thing during the production and quality process.
At present, we have become one of the top three suppliers of medical titanium rods/rods to Chinese titanium implant manufacturers. ISO 13485:2016 and ISO 9001:2015 certified.
